SuperSeal Waterproof Connector - 1 Way Male

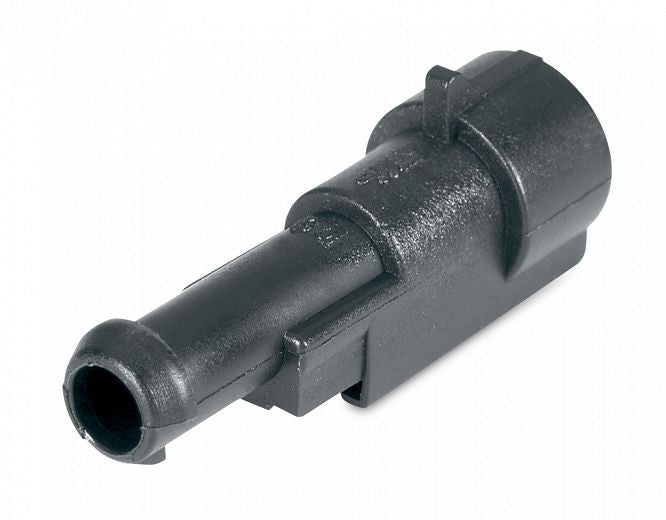

SuperSeal Waterproof Connector | 1 Way Male, 1.5 Series

These Superseal Conectors have been designed to meet the severe performance requirements demanded by the automotive and agricultural industries.  They provide maximum waterproofing and dustproofing to electrical connections.  Each pack comes complete with all terminals, grommets and seals required for installation.

These electrical connectors are a firm favourite of many auto electricians as their sealing reliability under harsh conditions is well proven and trusted.  They are particularly suitable for use in engine bay environments.

• Superseal 1.5 Series
• Number of Connections: 1
• Provides Maximum Waterproof Connection - IP67 Rated
• Suitable for Wire Sizes: 0.5 - 1.5mm²
• Each Pack Comes Complete with all Terminals and Seals Needed for Installation - Grommets & Terminals
• Compatible with SUPERSEAL 1-WAY FEMALE
• Provides Safe, Secure Water and Dust Protection for Electrical Connections
• Ideal for use in the Automotive Industry
• Suitable for use with: SUPERSEAL CRIMPING TOOL
• This product qualifies for FREE DELIVERY in the UK, see details below
• Quantity: Pack of 1



SHOP TODAY!

SUPERSEAL ASSEMBLY INSTRUCTIONS MANUAL

Check Out Our Great Deals on All:

• SUPERSEAL CONNECTORS
• AUTO ELECTRICAL SUPPLIES

Superseal Connectors:

This One Way, Male Superseal Connector is an IP67 waterproof connector ideal for use in the automotive industry.  The connector is designed to prevent water and dust ingress into the electrical enclosure.  This connector is suitable for use in harsh environments where weather proof water tight connections are required.

Secure Water Tight Interlock Mechanism:

This superseal connector is commonly used to install work lights/ LED lights on vehicle exteriors.  The quick and easy interlock mechanism between male and female units provides simple connection and de-connection when needed.  This allows for rapid and stress free installtion and replacment of lights saving time and effort.

Locking Mechanism Ensures Correct & Secure Connection:

This electrical connector is suitable for cables in the size range: 0.5 - 1.5mm².  They are installed by crimping a male tab and female receptacle terminal onto the cables and then inserting them into the the connector housing unit.  A secondary lock mechanism ensures that the terminals are properly located as the lock cannot be closed unless terminals are correctly inserted.  This ensures a sound and secure connection has been achieved and will prevent them from backing out of the superseal housing.

Assembley Tip:

When assembling the unit please ensure that the rubber cable seal is crimped within the rear part of the terminal to retain it within the housing. Check that the terminals are in good condition and not deformed before attempting insertion into the housing.  If necessary use a pair of long nosed pliers to pull the terminals forward before effecting closure of the red secondary locks.

IP67 - Dust & Waterproofing:

This superseal connector kit is IP67 rated.  IP is a standard used for waterproof connections.  IP - stands for Ingress Protection and is a system used to rate the level of protection against solids and liquids.  IP67 is the highest standard available for sealed and secure protection from solids and liquids.  The first number indicates the protection level against solid objects while the second number represents the level of protection against liquids.

Reliable Electrical Waterproofing:

This connector has a first number of "6" representing complete protection against dust and the second number "7" represents the maximum protection against liquids.  This rating indicates that the unit is protected from both dust and water - and is capable of withstanding water immersion at a depth of 15cm - 1 metre for at least 30 minutes.

Advantages of Using Superseal Connectors:

• The Compact Connector System Design Minimizes Packaging Requirements
• Proven Sealing Reliability and Waterproofing Harsh Conditions
• Engineered for Ease of Manual Harness Assembly and Engine Mounting

Applications:

• Wire-to-Wire Connections (0.5 to 1.5 mm) and ECU applications, Under Hood or Any Location where Sealing and Waterproof Connections are required
• Suitable for Automotive, Truck, Bus, Agricultural or off-road vehicles

Male/ Female Coupling:

Note: Male tab terminals fit into the female connector housing and vice-versa.  They are supplied with an anti-back out device which is pre-assembled on both the receptacle and tab housings.  After loading of all crimped contacts, these devices must be pushed into the "closed" position.  If one contact is not properly seated in the cavity, the plastic locking lance remains deflected and the anti-back out device cannot be closed.  This condition is a warning mechanism for the user that ensures that if the device is not closed the mating with the counterpart cannot be completed.

You can find all our Male and Female couplings here:  SUPERSEAL CONNECTORS
