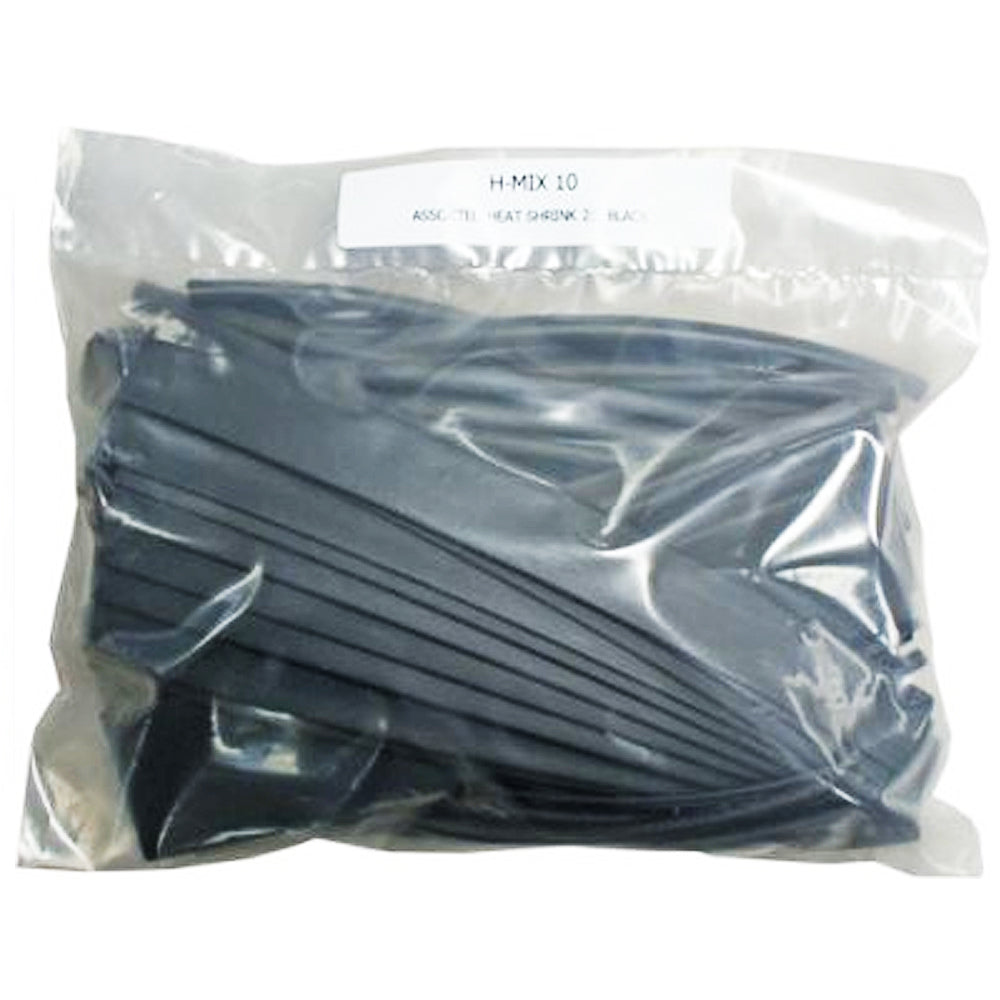

Heat Shrink Assorted Bag | 2:1 Ratio

SKU: GT-H-MIX10

Price:
Sale price£12.85

BULK BUY DISCOUNTS

Buy Pay
10 £12.53
50 £12.40
100 £12.21
500 £11.89

Description

Heatshrink Assorted Black | 2:1 Ratio

  • Ratio 2:1
  • Bag contains: Approx 100 pieces
  • Size Length: 8" inches
  • Sizes: 1.2 - 25.4mm
  • Excellent Flexibility and Insulation
  • Excellent Flame Retardant Properties
  • Colour: Black

Bag Contents:

  • 1.2mm x 5
  • 1.6mm x 5
  • 2.4mm X 10
  • 3.2mm X 10
  • 4.8mm X 20
  • 6.4mm X 20
  • 9.5mm X 10
  • 12.7mm X 10
  • 19.1mm X 5
  • 25.4mm X 5

View All Our Great Deals on:



Technical Details:

  • UL approved - UL 224 VW-1
  • Operating Range: -55 to +125 Degrees Celsius
  • Flammability: VW-1
  • UL, RoHS, Halogen Free


Grease Monkey Direct heat shrink tubing is a Halogen-free, flexible, flame-retardant polyolefin heat shrinkable tubing.  It is low smoke generating, abrasion resistant and in case of burning produces no dioxin.  It has excellent electrical and physical properties, including advanced acid fastness and corrosion resistance.  This Heat Shrink is suitable for insulation use in automotive electronics, terminal lugs, small electrical parts and lead wires of toy motors and transformers etc.  It is a UL361230 product.


For Technical Data Sheet Click Here



PROPERTY TEST METHODS TYPICAL DATA RESULT
Shrink Temperature Company Standard 90°C 105°C
Longitudinal Change ASTM D2671 -5% to +5% -3%
Tensile Strength ASTM D638 >10.4MPa 14.0MPa
Elongation at Break ASTM D638 >200% 400%
Tensile Strength after Aging ASTM D638 >7.31MPa 9.3MPa
Elongation at Break after Aging ASTM D638 >100% 200%
Dielectric Strength UL224, AC2500v, 1min No Breakdown No Breakdown
Heat Shock UL224, 136°C, 168hrs No Cracking No Cracking
Flammability UL224, -30°C, 1hrs No Cracking No Cracking
 Concentricity ASTM D2671 >70%
Operating Temp Range UL224 -55°C to 150°C
Radial Shrinking Change ASTM D2671 >50%








We serve Britain, The UK and Northern Ireland. To browse and purchase more products and view our current discounted, for sale and clearance offers please navigate from the GreaseMonkeyDirect.com home page.
