Description

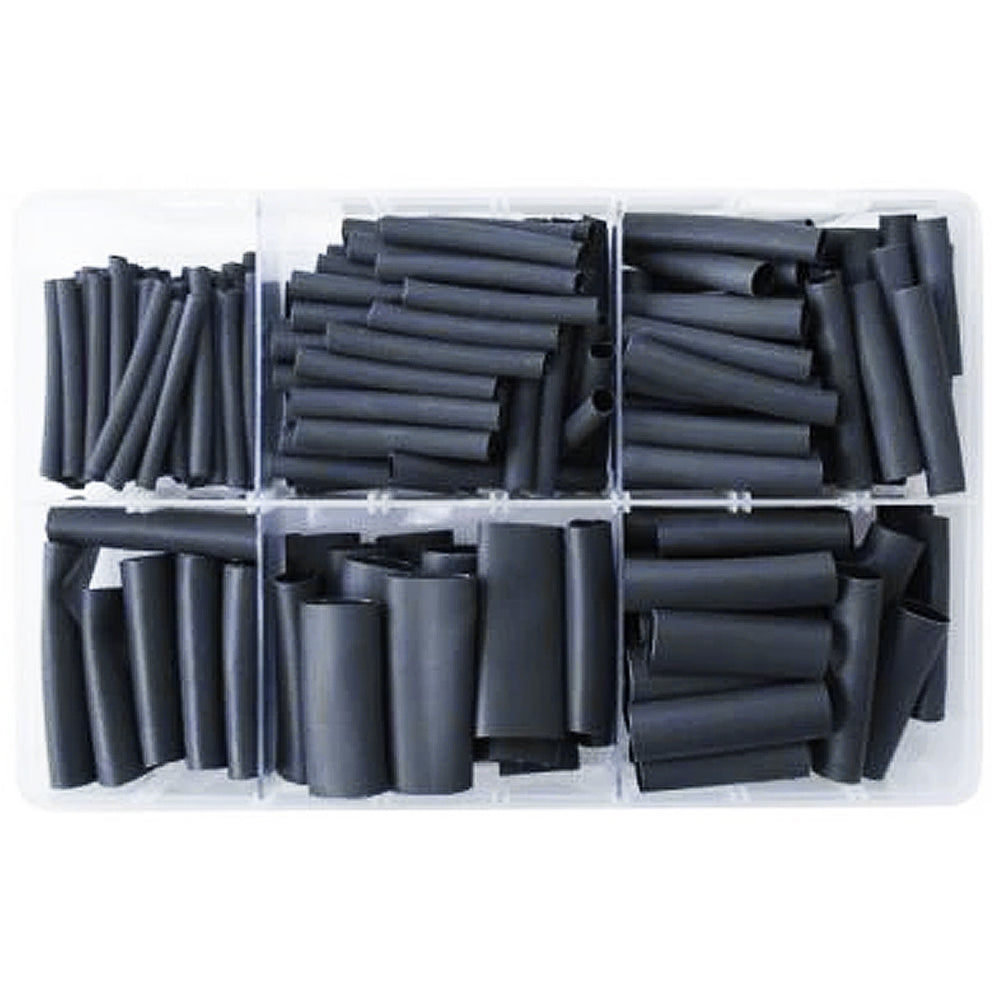

Heat Shrink | Assorted Box of 3:1 Adhesive Lined
- Adhesive Lined
- Ratio 3:1
- Box Contains: 225 Pieces
- Sizes: 3mm - 18mm
- Excellent Flexibility and Insulation
- Excellent Flame Retardant Properties
- Colour: Black
Box Contents:
- 74 x 4.8mm
- 60 x 3.2mm
- 45 x 6.4mm
- 25 x 9.5mm
- 15 x 12.7mm
- 6 x 19.1mm
View All Our Great Deals on:
Technical Details:
- UL approved - UL 224 VW-1
- Operating Range: -55 to +125 Degrees Celsius
- Flammability: VW-1
- UL, RoHS, Halogen Free
- UL approved - UL 224 VW-1
Grease Monkey Direct heat shrink tubing is a Halogen-free, flexible, flame-retardant polyolefin heat shrinkable tubing. It is low smoke generating, abrasion resistant and in case of burning produces no dioxin. It has excellent electrical and physical properties, including advanced acid fastness and corrosion resistance. This Heat Shrink is suitable for insulation use in automotive electronics, terminal lugs, small electrical parts and lead wires of toy motors and transformers etc. It is a UL361230 product.
For Technical Data Sheet Click Here
| PROPERTY | TEST METHODS | TYPICAL DATA | RESULT |
| Shrink Temperature | Company Standard | 90°C | 105°C |
| Longitudinal Change | ASTM D2671 | -5% to +5% | -3% |
| Tensile Strength | ASTM D638 | >10.4MPa | 14.0MPa |
| Elongation at Break | ASTM D638 | >200% | 400% |
| Tensile Strength after Aging | ASTM D638 | >7.31MPa | 9.3MPa |
| Elongation at Break after Aging | ASTM D638 | >100% | 200% |
| Dielectric Strength | UL224, AC2500v, 1min | No Breakdown | No Breakdown |
| Heat Shock | UL224, 136°C, 168hrs | No Cracking | No Cracking |
| Flammability | UL224, -30°C, 1hrs | No Cracking | No Cracking |
| Concentricity | ASTM D2671 | >70% | |
| Operating Temp Range | UL224 | -55°C to 150°C | |
| Radial Shrinking Change | ASTM D2671 | >50% |
