Description
Heat Shrink 1.2mm Black | 300m Roll
Heat Shrink 1.2mm
Ratio: 2:1
Diameter: 1.2mm
Excellent Flexibility and Insulation
Excellent Flame Retardant Properties
Colour: Black
Priced per Meter
UL Approved: UL 224 VW-1
Full Roll: 300 metres
Technical Data:
Material: Polyolefin
Operating Range: -55 to +125 Degrees Celsius
Flammability: VW-1
UL, RoHS, Halogen Free
Description:
This Grease Monkey Direct Heat Shrink Tubing Series is a Halogen-free, flexible, flame-retardant polyolefin heat shrinkable tubing. It is low smoke generating, abrasion resistant and in case of burning produces no dioxin. It has excellent electrical and physical properties, including advanced acid fastness and corrosion resistance. This Heat Shrink is suitable for insulation use in automotive electronics, terminal lugs, small electrical parts and lead wires of toy motors and transformers etc. It is a UL361230 product.
For Heat Shrink Technical Data/ Sizes - Click Here
| PROPERTY | TEST METHODS | TYPICAL DATA | RESULT |
| Shrink Temperature | Company Standard | 90°C | 105°C |
| Longitudinal Change | ASTM D2671 | -5% to +5% | -3% |
| Tensile Strength | ASTM D638 | >10.4MPa | 14.0MPa |
| Elongation at Break | ASTM D638 | >200% | 400% |
| Tensile Strength after Aging | ASTM D638 | >7.31MPa | 9.3MPa |
| Elongation at Break after Aging | ASTM D638 | >100% | 200% |
| Dielectric Strength | UL224, AC2500v, 1min | No Breakdown | No Breakdown |
| Heat Shock | UL224, 136°C, 168hrs | No Cracking | No Cracking |
| Flammability | UL224, -30°C, 1hrs | No Cracking | No Cracking |
| Concentricity | ASTM D2671 | >70% | |
| Operating Temp Range | UL224 | -55°C to 150°C | |
| Radial Shrinking Change | ASTM D2671 | >50% |

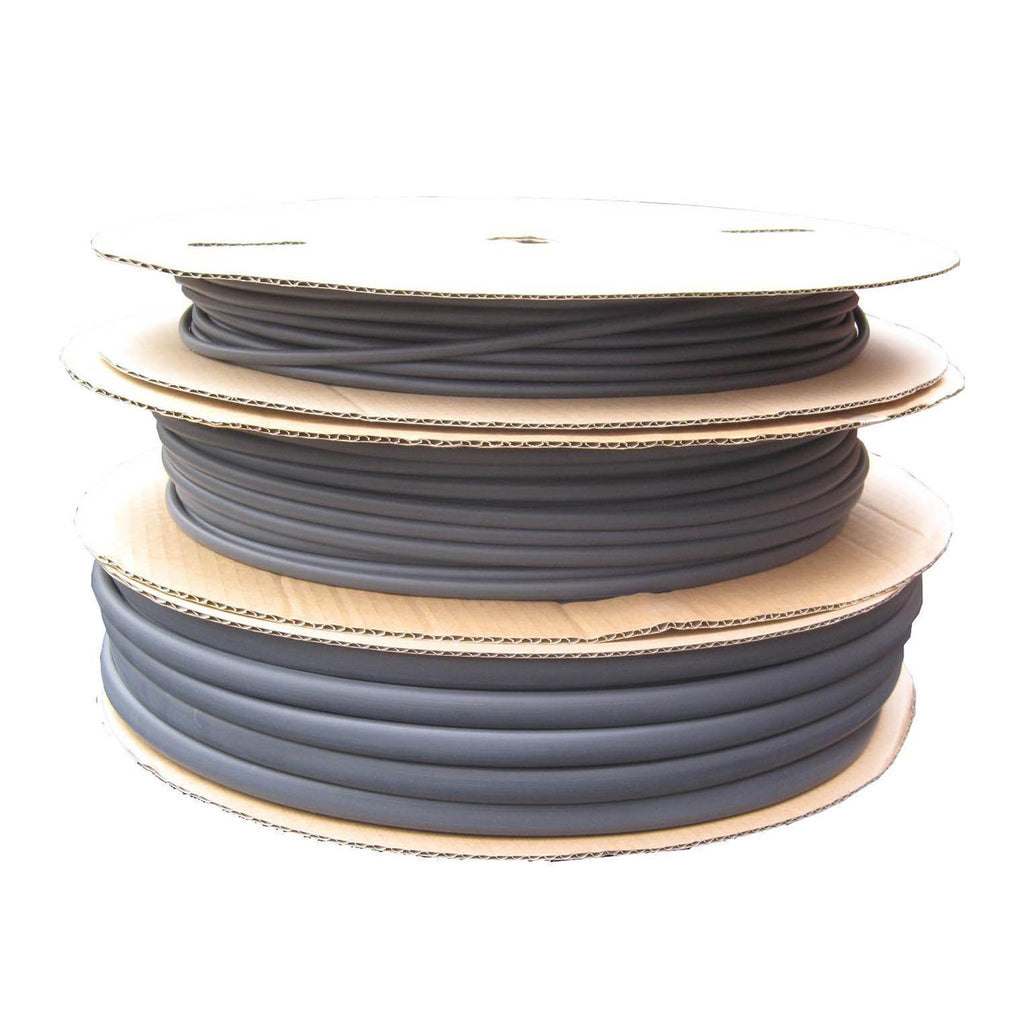

Heat Shrink Tubing Roll
Check out our range of heat shrink roll, heat shrink rolls, and roll of heat shrink products. We have the best value on roll of heat shrink tubing, heat roll, and rolls of heat shrink tubing. Shop heat shrink for sale now.
We serve Britain, The UK and Northern Ireland. To browse and purchase more products and view our current discounted, for sale and clearance offers please navigate from the GreaseMonkeyDirect.com home page.
