Description

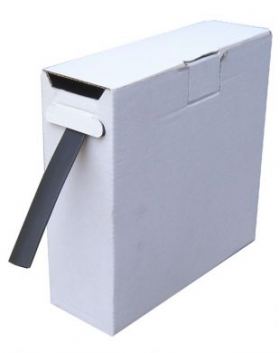

Heat Shrink Mini Reel 25.4mm | 3.5m Roll
- UL Approved - UL 224 VW-1
- Excellent Flexibility and Insulation
- Superior Flame Retardant Properties
- Available in the following colours: Black, Blue, White, Yellow, Red, Green, Clear
- Please choose colour required when placing order
- Length: 3.5m Roll
Technical Data:
Material: Polyolefin
Operating Range: -55 to +125 Degrees Celsius
Flammability: VW-1
UL, RoHS, Halogen Free
Description:
This Grease Monkey Direct 25.4mm Heat Shrink Mini-Reel is a halogen-free, flexible, flame-retardant polyolefin shrinkable tubing. It is low smoke generating, abrasion resistant and in case of burning produces no dioxin. It has excellent electrical and physical properties, including advanced acid fastness and corrosion resistance. This Heat Shrink is suitable for insulation use in automotive electronics, terminal lugs, small electrical parts and lead wires of toy motors and transformers etc. It is a UL361230 product.
| PROPERTY | TEST METHODS | TYPICAL DATA | RESULT |
| Shrink Temperature | Company Standard | 90°C | 105°C |
| Longitudinal Change | ASTM D2671 | -5% to +5% | -3% |
| Tensile Strength | ASTM D638 | >10.4MPa | 14.0MPa |
| Elongation at Break | ASTM D638 | >200% | 400% |
| Tensile Strength after Aging | ASTM D638 | >7.31MPa | 9.3MPa |
| Elongation at Break after Aging | ASTM D638 | >100% | 200% |
| Dielectric Strength | UL224, AC2500v, 1min | No Breakdown | No Breakdown |
| Heat Shock | UL224, 136°C, 168hrs | No Cracking | No Cracking |
| Flammability | UL224, -30°C, 1hrs | No Cracking | No Cracking |
| Concentricity | ASTM D2671 | >70% | |
| Operating Temp Range | UL224 | -55°C to 150°C | |
| Radial Shrinking Change | ASTM D2671 | >50% |
* images for illustration purposes only
